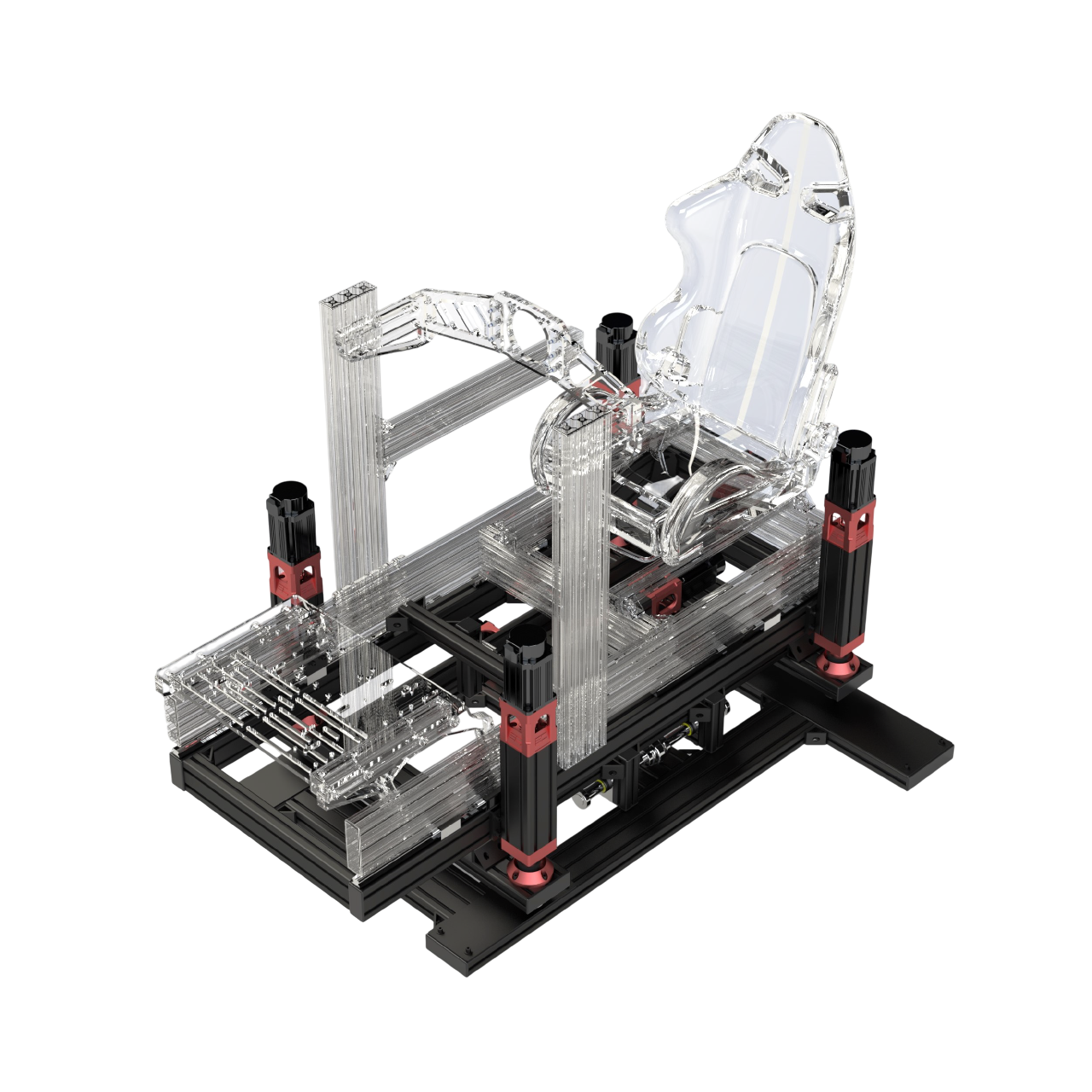

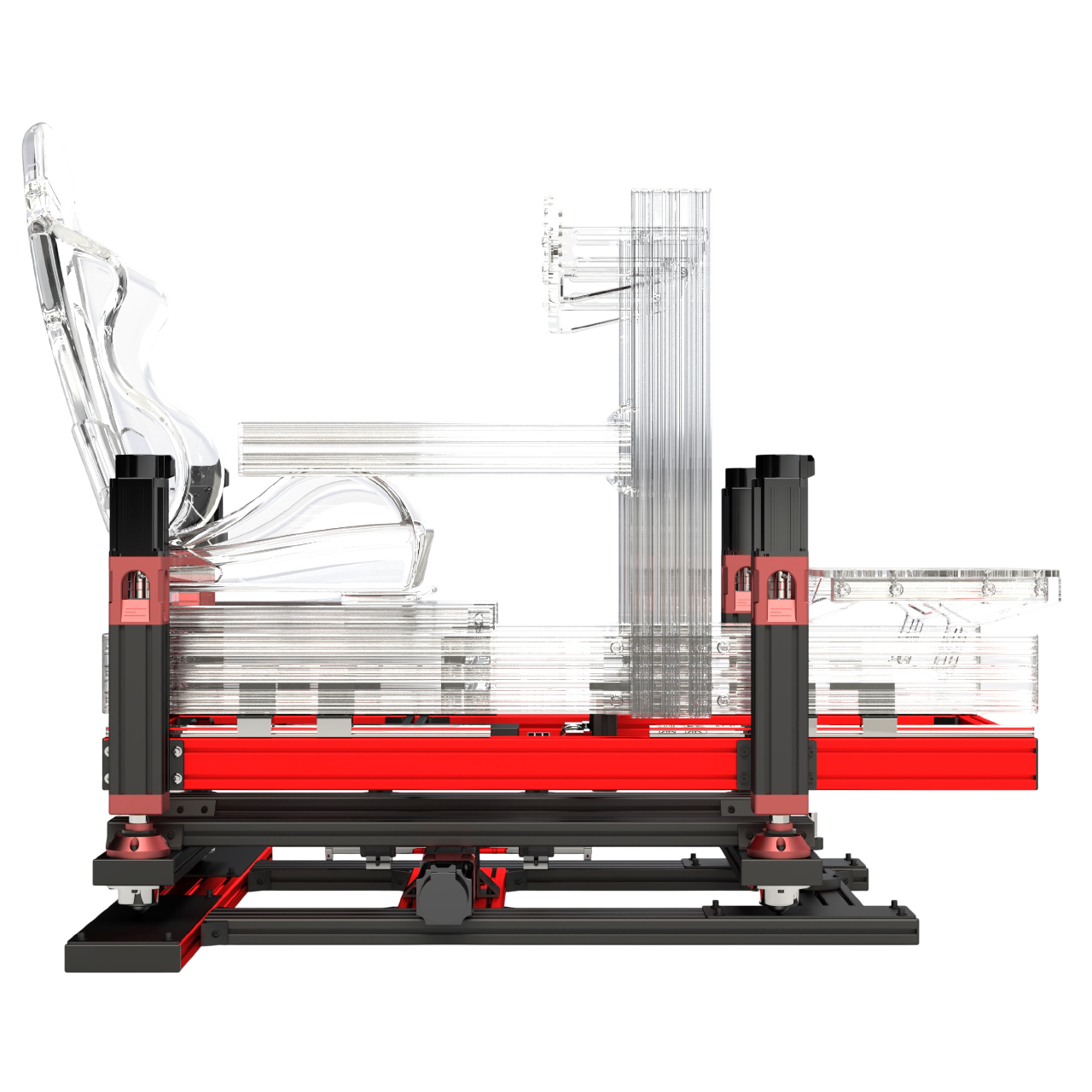

EC Standard 5DOF 80ST Servo Motors
SIMULATOR RACING PLATFORM
AED 23750.00
AVAILABLE 7 TO 10 DAYS TO DISPATCH
Highlights:
- A complete 5DOF turn-key motion system
- Flexible to choose from wide motionsd contrrolers
- HUGE list of supported games
- 6 x actuators to move a 440kg cockpit with driver effortlessly
- 150mm stroke travel plus extra 10mm safety tolerance
- Super low center of gravity, mounting point only 60MM with large rubber feet to avoid inner bolt knocking from ground
- Best in class on EMI suppression efficiency
-Self lubricating bearing for noise reduction and dust resistance for extended life.
-no shaking shafts neither shaft can rattling and inner cylinder knocking (NOT OUR STANDARD)
- One year standard warranty on Servo Motors.
- Five years structure warranty (3years)
Stroke: 150mm push and pull
Speed: 250mm/s
Servo Motor: 80mm flange, 750w
Max Load: 180kg per actuator
Voltage: 110-220V
Standard Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1230 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.
Aluminium Profiles anodised based on chosen option
Attachment Brackets
All kind bolts and nuts
4 x Stainless steel casters
4 x Aluminium casters rolling / support plates
1 x Pivot point bearing assembly
2 x pull bar assembly
4 x Aluminium Holder Cups for actuators set
6 x Actuators 150mm With Servo Motors made of 6061-T6 Grade Aluminum motor mount cup and motor shaft Cup Anodised
6 x 80 x 80 aluminium Profiles 61-63-T6 Aluminium Grade Black/Red Anodised
6 x 80st-m02430 Servo Motor
6 x Latest AASD-15A V6.3.1 servo drivers latest
6 x 4 Meter Motor Cable shielded cable
6 x 4 Meter Encoder shielded cable
6 x Power Cables
6 x DB25 1.5 meter Male to Male Customized Shielded Cables
4 x Attachment plates
4 x linear guide rail
8 x bearing blocks
8 x bearing blocks Bracket Attachment
15 pcs cable binder with zip ties
15U Network Cabinet with Toughened front door glass
2 x 1U rack-mounted 6-unit 13A UK Plug PDU Power Strip Network Cabinet Rack Socket 2M Extension Cable Standard Outlet Switch Supply Power
2 x 1U 24 Slot Rack Mount Horizontal Cable Manager Duct Raceway
1 x Fixed Shelf for Network Rack Cabinet
Compatible with all 40 series profiles racing rigs for attachment
Compatible with all control systems , thanos , SFX shield.. etc
SimHub
Sim Rcing Studio
Sim Tools
FlyPT Mover
Cockpit
seat
E STOP SWITCH
Extended Total weight include packaging 195 KG ± 5 kg
