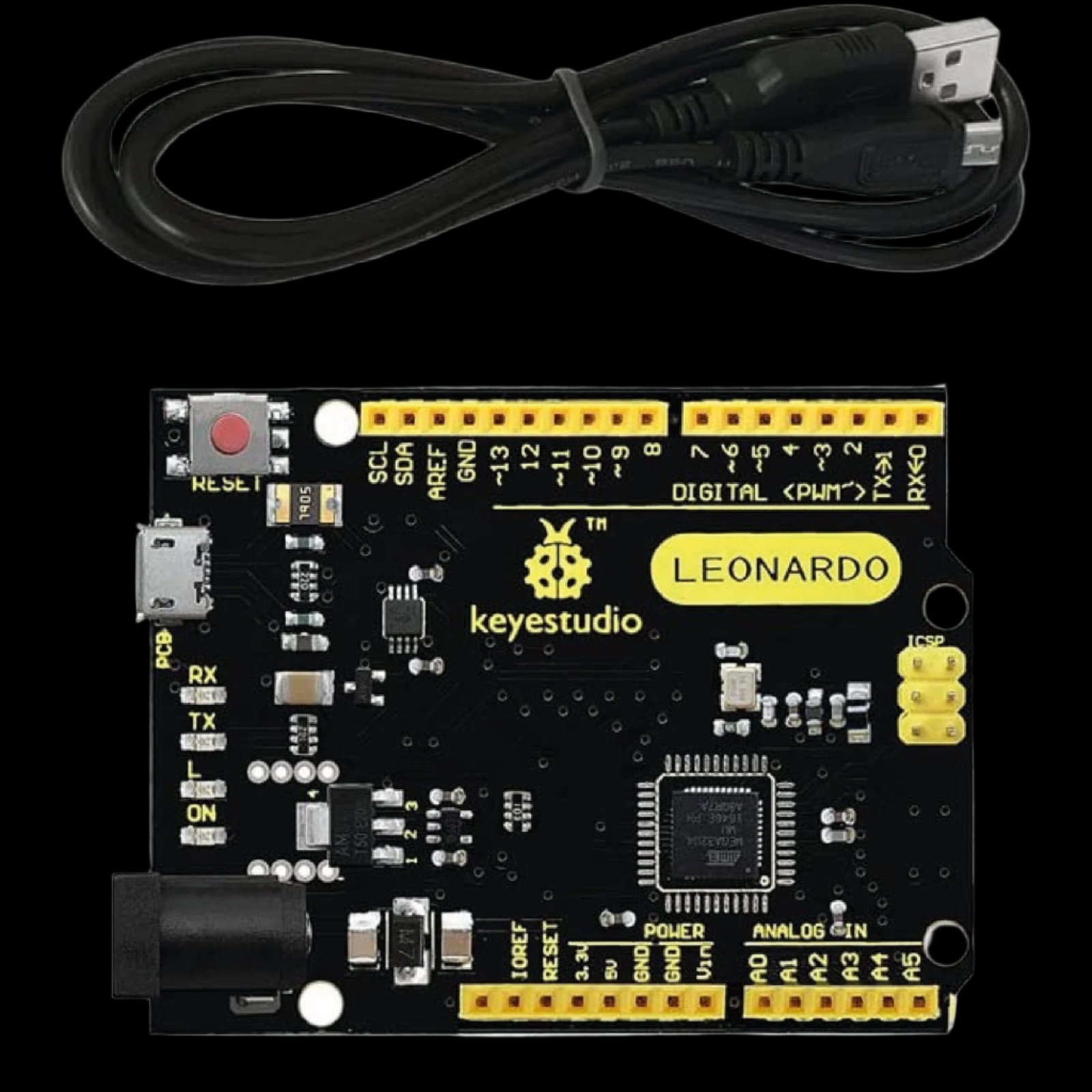

Elevate your electronics and programming projects with the Keyestudio Leonardo Board! This robust board is not only equipped with a powerful microcontroller but also features an array of versatile input/output pins. Whether you're a beginner or an expert, you'll find it compatible with Arduino and various development environments, making it ideal for all your innovative endeavors. The board comes in a sleek black color and includes a USB cable for hassle-free connectivity. Compact and lightweight, it's the perfect addition to your tech toolkit.

keyestudio Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It is an easy-to-use open source hardware.

It has 20 digital input/output pins (of which 7 can be used as PWM outputs), 12 analog inputs, a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Note that ICSP (In-Circuit Serial Programming) header can not only program the firmware to Atmega32u4, but also be used as SPI communication interface.

The keyestudio Leonardo can be powered via the micro USB connection, or via an external power supply jack (DC 7-12V) or even with female headers Vin /GND (DC 7-12V).

The Leonardo differs from other Arduino boards using separate USB-Serial chip in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard.

Games can run

• 8.1 Assetto Corsa & Assetto Corsa Competizione. Shared Memory.

• 8.2 iRacing.

• 8.3 Project Cars 1&2. Shared Memory.

• 8.4 Dirt Rally. UDP.

• 8.5 F1 2018. UDP.

• 8.7 rFactor2.

• 8.8 No Limits 2.

• 8.9 DCS.
