Stroke: 150mm push and pull

Speed: 250mm/s

Max Load: 100kg pull per actuator

Voltage: 110-220V

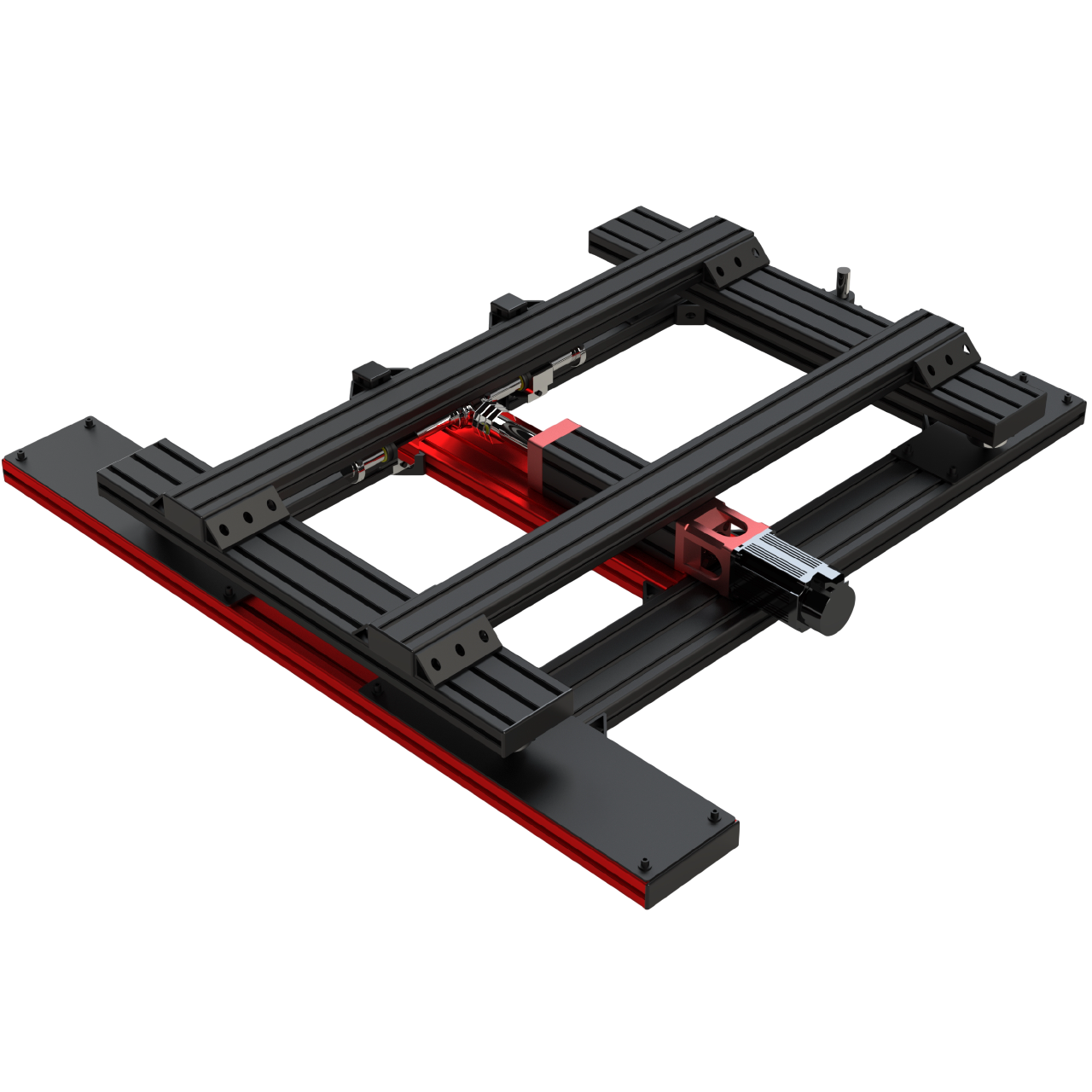

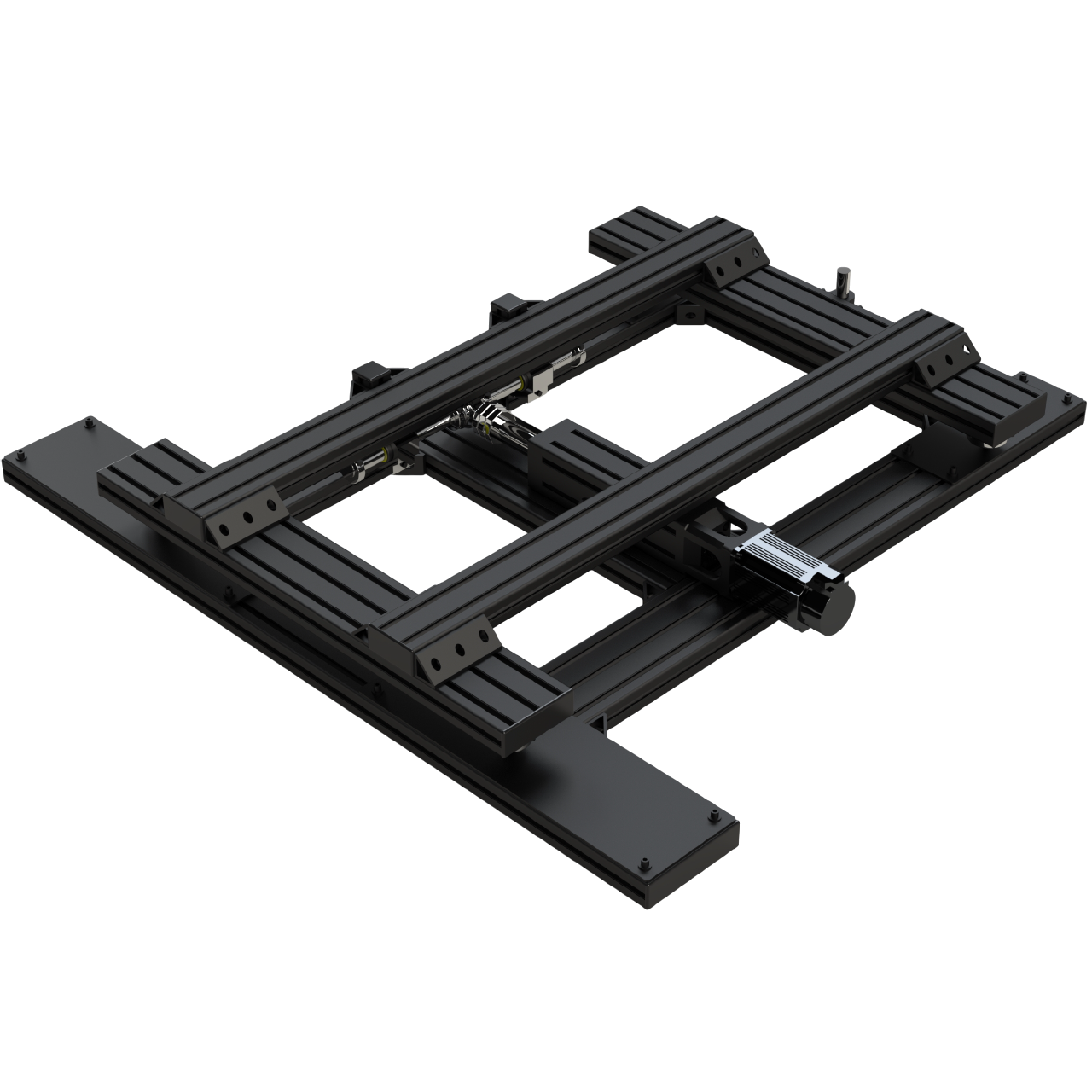

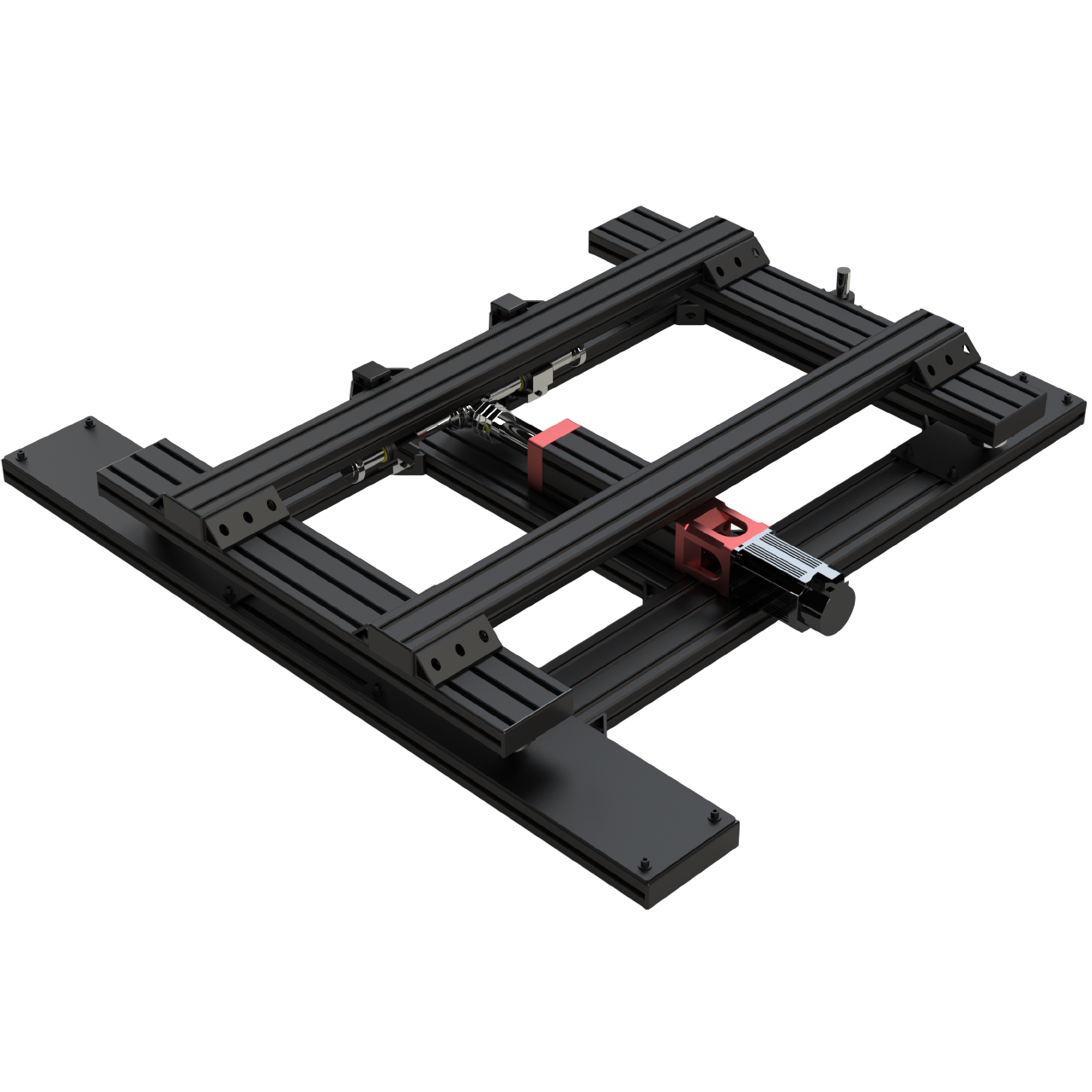

Standard Ultimate Platform, fits cockpit with wheel hose Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1230 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

Aluminium Profiles anodised based on chosen option

Attachment Brackets

All kind bolts and nuts

1 x pull bar assembly

1 x Pivot point bearing assembly

1 actuators 150mm With Servo Motors made of 6061-T6 Grade Aluminum motor mount cup and motor shaft Cup Anodised

1x 80 x 80 aluminium Profiles 61-63-T6 Aluminium Grade Black/Silver Anodised

1 x 80st-m02430 Servo Motor

1 x Latest AASD-15A V6.3.1 servo drivers

1x 4 Meter Motor Cable shielded cable

1x 4 Meter Encoder shielded cable

1x Power Cables

1x DB25 Male to Male Cables

Compatible with all 40 series profiles racing rigs for attachment

Compatible with all control systems , thanos , SFX shield.. etc

SimHub

Sim Rcing Studio

Sim Tools

FlyPT Mover

Aluminium Holder Cups pack

Extended Total weight include packaging 75 KG
