Features:

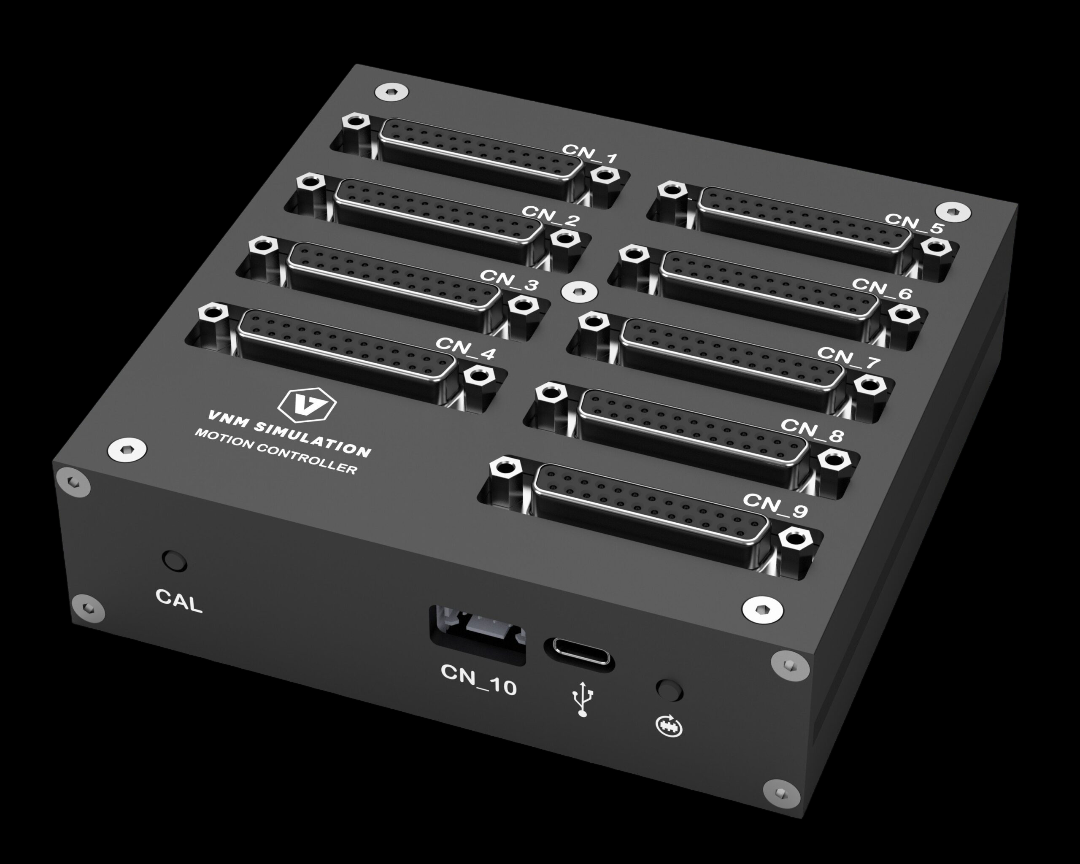

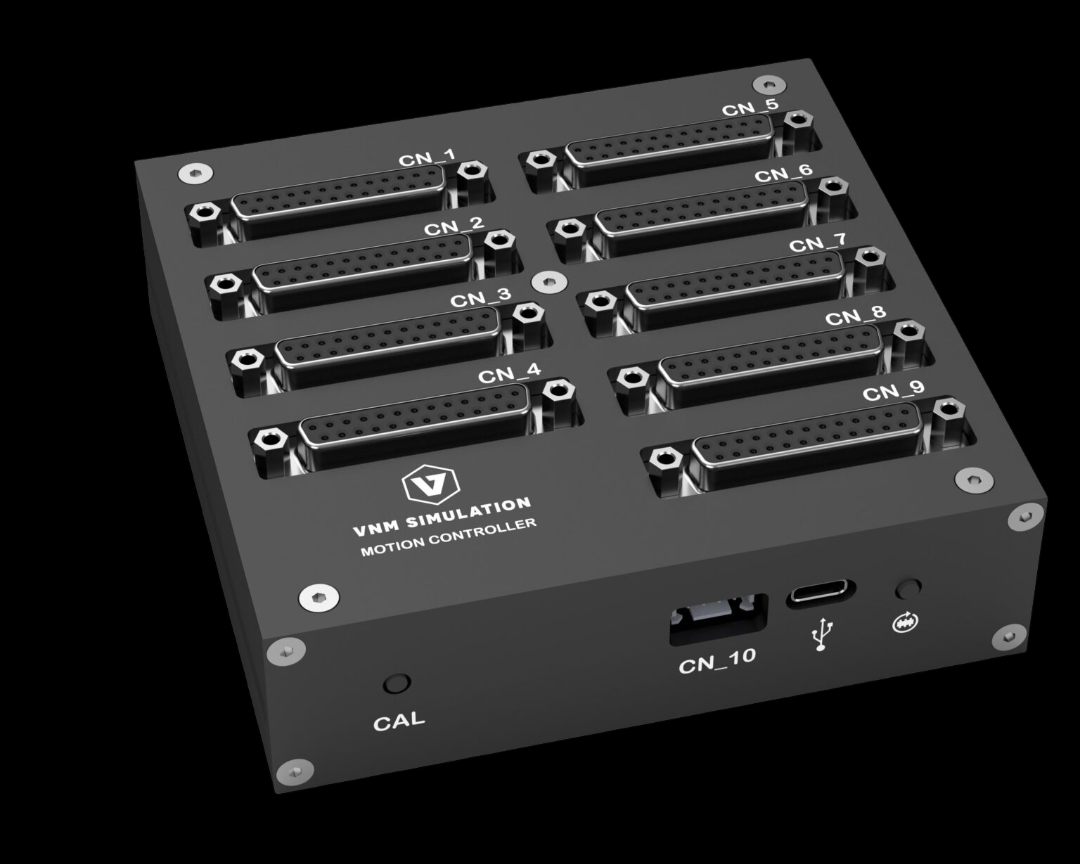

• The anodized Aluminum box reduces noise from other devices.

• Isolates the micro controller from all servo drivers to reduce EMI with optocoupler and digital isolator.

• Supports up to 9 servos with pulse frequency up to 500khz (both are configurable).

• The accurary of pulse generation is almost absolute (see the picture with 100 milions pulse, no pulse is lost).

• Generates exactly the number of pulses that the driver needs so the pulse resolution is very high and smooth movement.

• Automatically correct the position of the actuator in case the servo driver loses pulse when the actuator reaches the limit.

• Supports up to 2 belt tensioners without belt tensioner feature on a motion software.

• Configure parameters/Monitoring system state via VNM Config UI.

• The control loop is 1 ms that is realtime with a motion application.

• Filtering feature to make the actuators run smoothly in VNM Config UI.

• Unlimit baurate that mean can run at any speed that a motion software supports.

Work with:

• FlyPT Mover

• Sim-motion

• Simtools

• SRS
